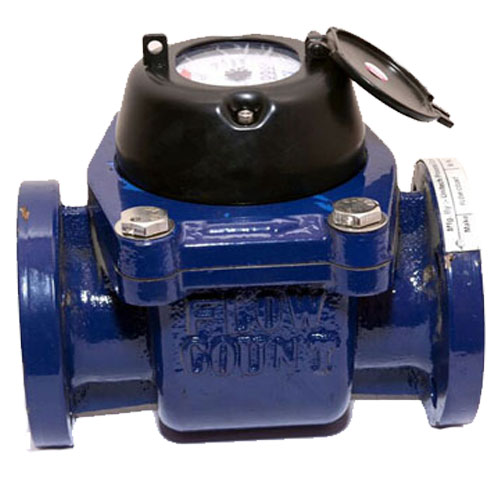

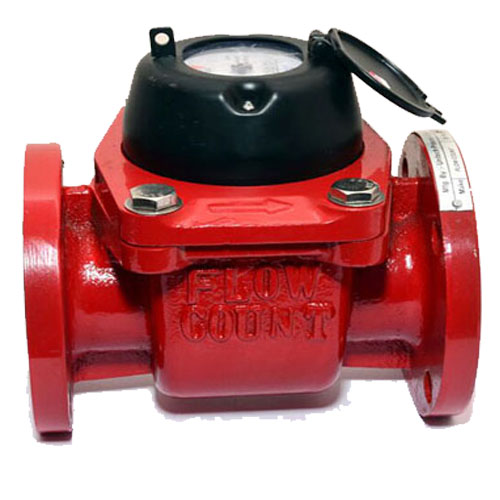

UPC Woltman Type Water Flow Meter Flanged Class B
The Woltman Type Water Meter is a highly accurate and durable mechanical device designed to measure large volumes of water flow in industrial, commercial, and municipal applications. It operates with a turbine impeller that rotates with the flow of water, providing precise measurements.
For bulk orders or B2B inquiries, email us : sales@asmaindustrial.com
Specifications:
Size Range: 50mm to 400mm
Flow Rate: Suitable for low to high flow applications (0.1 m³/h to 10,000 m³/h)
Accuracy: ±1.5% to ±5%
Materials: Durable cast iron
Pressure: Up to 16 bar (higher pressure options available)
Temperature: Up to 130°C (higher temperatures available for specific models)
Installation: Can be installed horizontally or vertically
Low Maintenance: Designed for long-term performance with minimal upkeep
Ideal for environments with fluctuating water flow, the Woltman Type Water Meter ensures reliable and consistent measurements. Perfect for large-scale water management systems.
