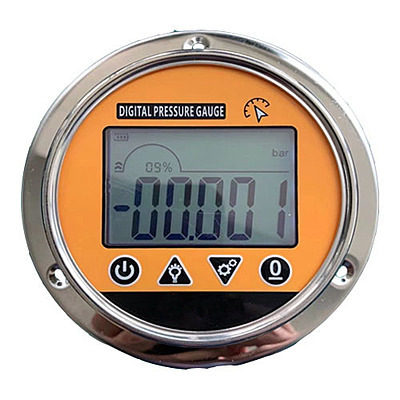

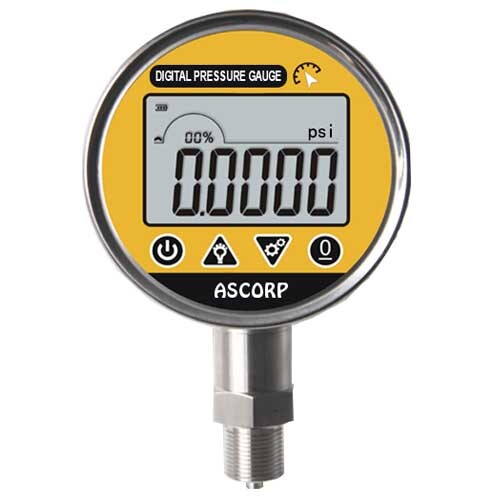

Digital Master Calibration Pressure Gauge 5 Digit LCD ASP-100G

Application Description

Adjusting and calibrating common pressure gauge, precision pressure gauge, sphygmomanometer etc.;

Precision pressure measuring;

Scientific research experiment;

Main Character

Wide range temperature compensation make measurement more accurate;

Strict aging process, long-term stability and reliability;

Large LCD screen, more intuitive for large font;

Ultra-low power design, battery is more durable;

High-speed pressure sampling up to 10 times per second. Pressure sampling period could adjust;

Multiple pressure unit switching: mmH2O、mmHg 、inH2O、inHg 、kgf/cm2、psi、kPa、MPa、Pa、hPa、mbar、bar; Which can realize 11pressure unit transform easily.

Automatic Peak Records, record the max and min value during measuring;

Support user pressure calibration, two-point (full range point, zero point) calibration, easy and fast operation;

Power: Standard lithium battery ER18505, which is convenient for users to replace;

Using Environment

Environment temperature:（-20～70）℃;

Storage temperature:（-30～80）℃;

Relative humidity:＜95%RH;

Atmospheric pressure:（86～106）kPa;

LCD Display

Full-view LCD screen with no blind spots;

High brightness backlight, easy to read with low illumination;

5 digits display with high resolution;

Dynamic progress bar pressure indication and pressure percentage indication;

Power Supply

Default: ER18505 Lithium battery powered;

Optional: 5V、12V、24V powered, power adapter power supply;

Mounting Dimension

Diameter: headφ100mm × 50mm, length 160mm;

Thread:M20 × 1.5 G1/2 NPT1/2（or According to customers’ requirements）;

Weight: about 0.5kg;

Mounting: Bottom. (Back with flange for optional);
