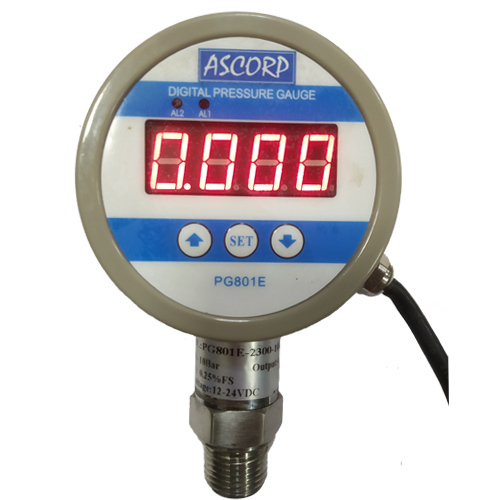

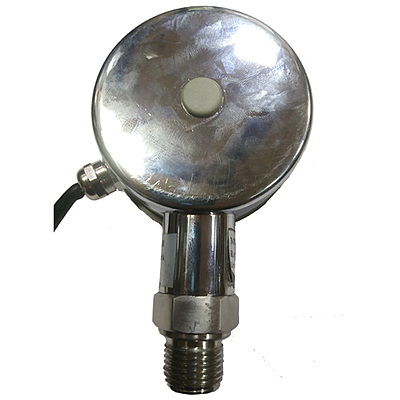

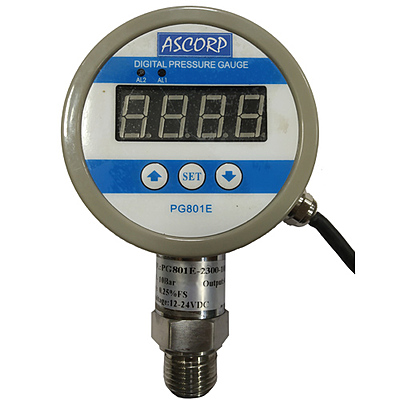

Digital LED Pressure Gauge Switch with Output ASP-801E

Product Specifications:

• Display: 4.5-digit large LED display (15x6mm),

• Accuracy: 0.25% Full Scale.

• Pressure Range: Vacuum to 1000 Bar.

• Thread Sizes Available: M20x1.5, G1/2, G1/4, 1/4" NPT, and others

• Output Options: 4-20mA, 2 Alarms, 2 Relay Contact, RS485

• Power Supply: 10-33VDC

• Housing Material: Stainless Steel

• Operating Temperature: -20°C to 85°C

• Storage Temperature: -20°C to 85°C

• Temperature Shift: 0.05% Full Scale per degree

• Size**: 84mm diameter

• Engineering Units: Selectable units when ordering

• Front Panel: Polycarbonate, OEM available

• Maximum Allowed Load: Less than 600 Ohm

• Over Pressure: 200% of the pressure range, less than 1200 Bar

• Burst Pressure: 400% of the pressure range, less than 1200 Bar

• IP Rating: IP66

• Weight: Approximately 750g
